الوصف

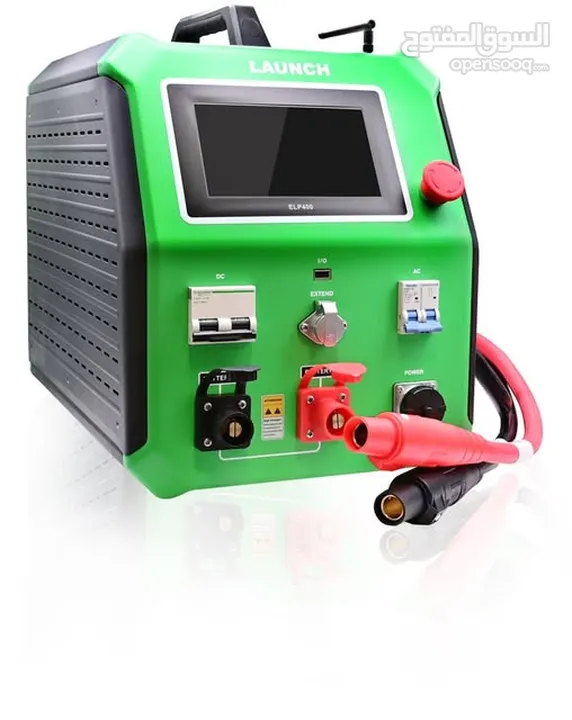

جهاز بلانس البطاريات Launch ELP400 EV Battery Pack Module Charging and Discharging Device
Launch ELP-400 EV Battery Pack Module Charging and Discharging Device Features:
1. The 7-inch LCD touch screen and the intuitive menu simplified the operation.
2. Portable, easy to carry and transport.
3. Applied to all common lithium battery packs testing with various voltage levels.
4. Equalizing maintenance test can activate the lithium battery performance completely.
5. Support intelligent equalizing function, and equalizing maintenance parameter customization.
6. Adopt wave width modulation technology, high efficiency, high power factor, low noise, low electromagnetic interference.
7. Support multiple protection design and alarm settings of voltage, current, temperature abnormal to protect the battery and the balancer.
8. Support the safety protection functions such as overvoltage, undervoltage, overcurrent, output short circuit, anti-reverse protection and overheating protection.
9. Multiple discharge auto-stop conditions make testing mode more intelligent and flexible, and avoid over-charge and over-discharge.
10. Customized setting the total charging time, constant voltage time, charging capacity, and charging current.
Launch ELP-400 EV Battery Pack Module Charging and Discharging Device Specification:
Power Input AC 90~265V
Data Communication CAN RS485
Data Dump U disk
Data Storage 16G
Module Data Acquisition Communication Harness sampling
Group Voltage Accuracy ≤±0.5%FS±0.3V, resolution: 0.001V
Cell Voltage Accuracy ≤±0.1%FS±5mV, resolution: 0.001V
Current Measurement Accuracy ≤±1%FS+0.2A, resolution: 0.1A
Charging/Discharging Voltage Range DC 2~260V
Charging Current Range 0~100A, maximum power 4.4kw
Discharging Current Range 0~100A, maximum power 7.2kw
Charging Control
Constant current charging + constant voltage charging
Discharging Mode Constant current discharging
Charging and Discharging Data Acquisition
In-camera active measurement + external can communication data acquisition
Electric Box Charging and Discharging Protection
Battery string overcharge and over discharge,
battery string temperature is too high protection
Main Unit Protection Over temperature, over current, current runaway trigger shutdown protection
Shutdown Actuator DC air circuit breaker + release
Reverse Connection Protection Power failure of power line and main cable
Over-temperature Protection 100°C resistance box over temperature 85°C; radiator over temperature 100°C
Alarm Prompt LCD prompt + buzzer
SAFETY TEST
Breaking Down Test AC input-metal shell: 2200Vdc 1 min AC input-metal shell
DC input-output: 2200Vdc 1 min DC input-case
WORKING ENVIRONMENT
Radiation Method Forced air cooling
Temperature
Working temperature range: -5~40°C
Storage temperature: -20~70°C
Humidity Relative humidity 0~90%(40±2°C)
Elevation Rated altitude 2000m
SIZE AND WEIGHT
Dimensions/Weight 445*329*540(mm)/25.6kg
للطلب إضغط ليظهر الرقم.. 07951080XX
...
